The Fiberglass Square Tube is expertly manufactured utilizing an advanced pultrusion process. This method begins with the meticulous selection of premium raw materials, primarily encompassing specific resin systems, continuous fiberglass rovings, and specialized additives. These components are tailored precisely to meet stringent profile requirements, delivering exceptional mechanical strength, reliable electrical insulation, and superior anti-corrosion properties. When running your hand along the surface, you will notice a distinctly smooth yet rigid finish, indicative of its dense, non-porous structure that effectively seals out moisture.
The FRP Plastic pultruded Hollow square tube pipe can meet the customer's requirements by using different combination of resin, fibers and others. We provide multiple resin grades to match specific environmental demands: GP (General Purpose) for standard structural support, ISO (Isophthalic) for enhanced moisture and corrosion resistance, and VE (Vinyl Ester) for extreme chemical exposure. This material selection flexibility ensures optimal performance across diverse industrial applications.
The Fiber Reinforced Plastic (FRP) pultruded hollow tubes offer a unique combination of chemical resistance, size stability, high strength, and thermal/electric non-conductivity, etc. Beyond these core attributes, they provide structural advantages that directly translate to cost efficiency. With a bending strength that surpasses traditional timber and a load-bearing capacity rivaling steel, these tubes dramatically reduce overall structural weight. This lightweight nature, combined with a rust-free, zero-maintenance lifecycle, significantly lowers long-term project expenses and installation labor.
Product Name | Fiberglass Square Tube |
Material | FRP |
Color | Customization |
Standard | ATSM |
Diameter | 25mm-101mm |
Resin Type | GP resin,ISO resin,VE resin |
Packaging Type | Steel pallet |
Used | Construction |
Due to their exceptional strength-to-weight ratio and environmental resilience, these fiberglass square tubes are widely integrated into demanding industrial and commercial projects. They serve as reliable primary structural supports in construction, where traditional materials might falter under corrosive conditions. In marine and offshore engineering, the tubes resist saltwater degradation, maintaining their structural integrity over decades of continuous use. Furthermore, their non-conductive nature makes them the preferred choice for antenna masts, electrical insulation enclosures, and radar-transparent structures. Chemical processing plants utilize them for anti-corrosion walkways and platforms, while modern agricultural facilities benefit from their resistance to harsh fertilizers and constant moisture exposure.

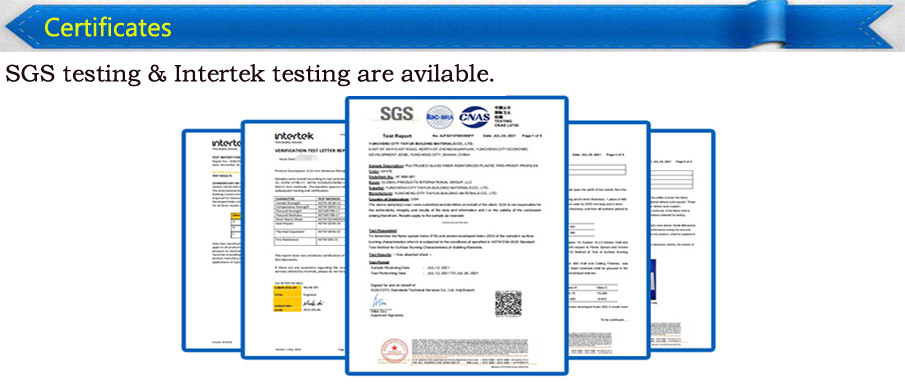

Ensuring consistent performance and safety is our top priority. The fiberglass square tubes undergo rigorous third-party testing and internal quality assurance protocols to verify their mechanical yield, flame retardancy, and precise dimensional accuracy. These qualification certificates demonstrate our commitment to delivering reliable structural components that comply with stringent international standards. By maintaining these documented standards, procurement teams and project engineers can confidently specify our FRP tubes for critical load-bearing and safety-sensitive applications, knowing they have been validated for long-term durability and extreme environmental resistance.

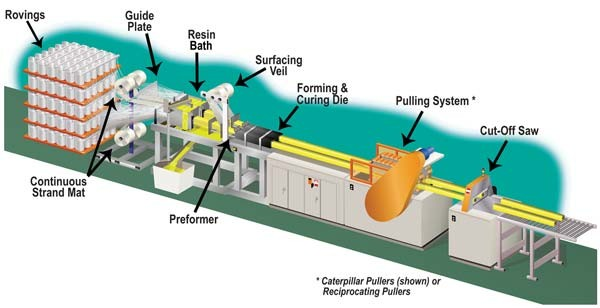

The process of fiberglass square tube usually includes the following several main steps, each meticulously monitored to guarantee structural perfection and longevity:
1. Preparation of raw materials: Prepare raw materials such as premium fiberglass yarn and specific resin formulations (GP, ISO, or VE) based on the project's environmental demands.
2. Weaving or winding: Arrange the fiberglass yarn in a certain structure through the weaving or winding process, creating a robust internal matrix that dictates the final tube's tensile strength.
3. Resin impregnation: Make the woven or wound fiberglass fully impregnated with resin in a controlled bath, ensuring every fiber is saturated to eliminate voids and prevent future moisture ingress.
4. Molding and curing: Put the fiberglass impregnated with resin into the heated steel die mold for molding and curing under certain temperature and other conditions. This thermo-chemical reaction solidifies the profile.
5. Demolding: Take the cured square tube out of the mold using a continuous pulling mechanism, which ensures consistent cross-sectional dimensions and a perfectly straight profile.
6. Post-treatment: It may include trimming, grinding, surface treatment, etc. to improve the appearance quality and performance. During this phase, a specialized surface veil co-extrusion is often applied to effectively block UV radiation, prevent internal glass fibers from blooming, and drastically extend the material's weathering lifespan.
Our fiberglass square tubes are designed with fabrication convenience and assembly adaptability in mind. The material is inherently easy to process on-site; it can be drilled, cut, sanded, and bonded using standard tools without the need for specialized welding equipment. We fully support custom cut-to-size services and deep fabrication, making these profiles perfectly suited for both rapid engineering prototyping and large-scale, high-volume production runs.
Furthermore, the precise dimensional tolerances of both the inner and outer diameters allow for seamless sleeving and telescoping assembly. This exact sizing ensures that the tubes integrate flawlessly with a wide variety of right-angle connectors, end caps, and fastening accessories. By simplifying the connection points and reducing assembly friction, construction teams can significantly accelerate installation timelines while maintaining a rigid, secure framework.

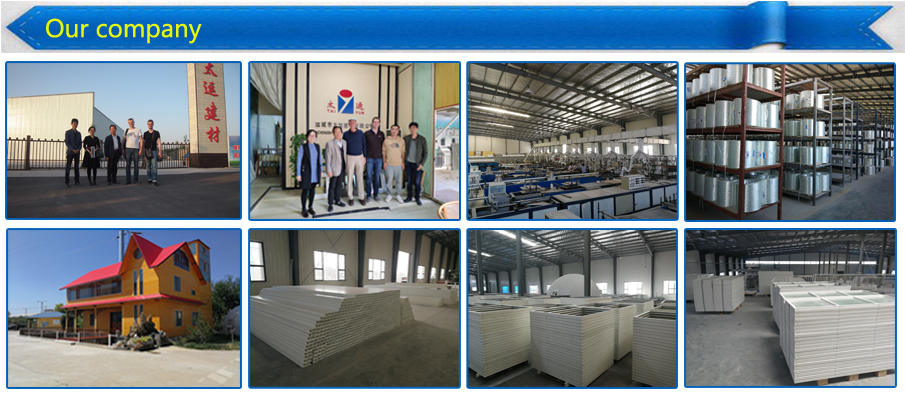

With years of dedicated expertise in composite material manufacturing, our facility is equipped to handle complex and large-volume demands for structural FRP profiles. We source only the finest raw resins and glass fibers, maintaining strict oversight over every phase of the pultrusion process. Our engineering team works closely with procurement managers and project developers to provide tailored material solutions that meet specific load, environmental, and regulatory requirements.
We understand that reliability and consistency are paramount for structural components. Therefore, our production lines are calibrated for precision, ensuring every batch of square tubes matches the approved prototype in both physical performance and visual finish. From initial consultation to final delivery, our comprehensive service model is structured to reduce your sourcing risks and optimize your supply chain efficiency.

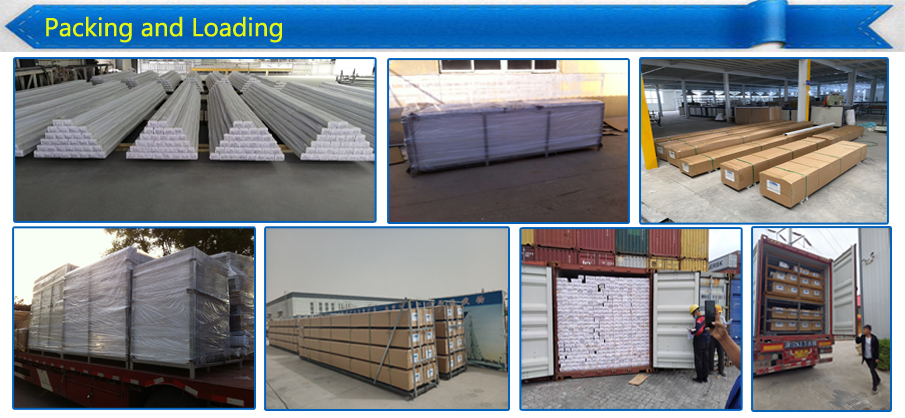

Packing Details : Wooden pallets are usually used, though robust steel pallets are also implemented as specified in our product parameters, depending on the load weight and shipping requirements. Each bundle of fiberglass square tubes is carefully wrapped and secured to prevent surface abrasion, shifting, or impact damage during transit. This meticulous packaging ensures that the anti-aging surface veils remain perfectly intact upon arrival at your facility.
Delivery Details : 10-45 days after order confirmation. We coordinate closely with reliable logistics networks to manage the safe and timely transportation of both standard and custom-length profiles. Whether your project requires a rapid dispatch of in-stock dimensions or a scheduled delivery for a large-scale custom extrusion run, our dispatch team provides accurate tracking and transparent communication throughout the entire shipping process.
A: Generally it is 5-10 days if the goods are in stock. or it is 15-40 days if the goods are not in stock, it is according to quantity. We strive to optimize our production scheduling to ensure your project timelines are met without compromising on the structural integrity of the profiles.
A: Yes, we could offer the sample for free charge but do not pay the cost of freight. These samples allow your engineering team to physically evaluate the surface finish, dimensional accuracy, and resin quality before committing to a full-scale order.
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment. Our flexible payment structures are designed to facilitate smooth transactions for commercial procurement.
If you have another question, pls feel free to contact us as below:
