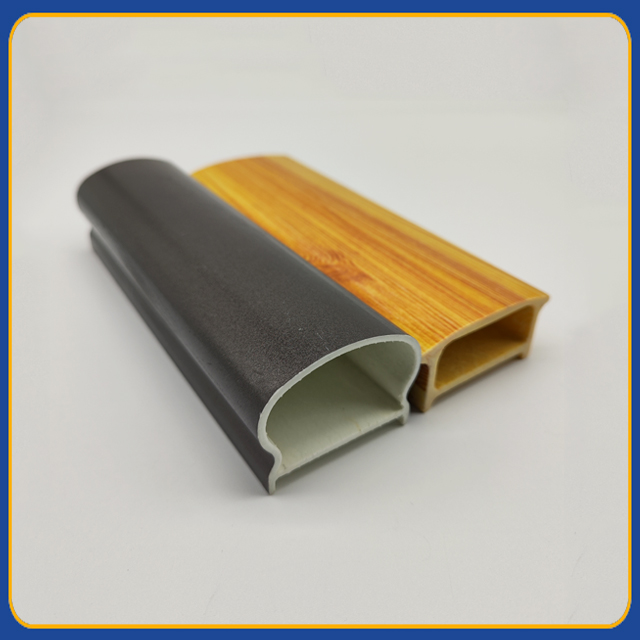

FRP Pultrusion Profiles are continuous fiber-reinforced composite shapes made by pulling resin-saturated reinforcement through a heated steel die until the material cures into a rigid, constant cross-section. The finished part may be a tube, rod, angle, channel, I-beam, ladder rail, cable tray member, or a more application-specific shape such as FRP Door and Window Profiles.
This guide explains how FRP Pultrusion Profiles are made, but the real buying question goes deeper than the production sequence. Use this as a quick index: first, materials; then the pultrusion line; then quality risks, testing requirements, application fit, and what to ask before choosing standard or Custom FRP Profiles.
The structural backbone of most FRP Pultrusion Profiles is glass fiber reinforcement. Continuous glass fiber roving runs along the pulling direction, giving the profile strong longitudinal tensile and flexural performance. That fiber direction is one reason pultruded FRP can replace steel, aluminum, or wood in platforms, handrails, supports, cable trays, and FRP Door Profiles where weight, stiffness, and corrosion resistance matter.
Longitudinal strength is only part of the design. Continuous filament mat, woven fabric, stitched mat, or transverse reinforcement helps distribute loads across the profile width and reduces splitting. Similar-looking profiles can perform differently when reinforcement architecture changes, especially in FRP Window Profiles where dimensional stability, edge strength, and long-term shape retention affect sealing and installation quality.
The resin matrix binds the fibers, transfers stress, and protects reinforcement from moisture, chemicals, heat, and weathering. Polyester resin is often chosen for general industrial use because it balances cost and performance. Vinyl ester resin is stronger for chemical resistance, especially in wastewater plants, cooling towers, marine structures, and processing facilities.
Epoxy resin can provide stronger fiber-matrix bonding and higher mechanical performance. Polyurethane Pultruded Profiles are useful when manufacturers need higher fiber loading, fast cure, strong stiffness, and reliable fastening performance. For FRP Door and Window Profiles, polyurethane systems may be attractive because door and window frames require dimensional stability, screw-holding strength, thermal insulation, and a clean surface finish.
Environment or Requirement | Better Resin Direction | Why It Matters |
General platforms and handrails | Polyester | Cost-efficient for moderate exposure |
Wastewater or chemical areas | Vinyl ester | Better resistance to wet chemical service |
High-load structural parts | Epoxy | Strong bonding and mechanical performance |
Rigid high-volume profiles | Polyurethane | High fiber content and efficient processing |
FRP Doors and Windows | Polyurethane or optimized polyester system | Supports stability, insulation, and fastening strength |
Outdoor exposure | UV-stabilized system | Helps reduce surface degradation |
Additives affect whether FRP Pultrusion Profiles survive their environment. UV inhibitors slow sunlight degradation, pigments support color consistency, release agents improve die processing, and anti-shrink additives help stabilize the cured shape. Fire retardants may be necessary for rail, public access, electrical, or building-related projects.
Outdoor profiles need weathering resistance, chemical profiles need compatible resin chemistry, and regulated interiors may need flame performance documentation. For FRP Doors and Windows, additives also influence color stability, thermal performance, flame behavior, and long-term surface appearance.
A surface veil forms a resin-rich outer layer around the reinforcement. It improves appearance, reduces visible fiber texture, and creates a protective barrier between glass fibers and the service environment. In UV-exposed or corrosive locations, it helps delay fiber bloom.
Production begins with reinforcement feeding. Rovings are drawn from creels, while mats or fabrics are guided from rolls into a controlled fiber package. Tension must remain stable because loose, crossed, or uneven fibers can create waviness, weak zones, or wall thickness variation.

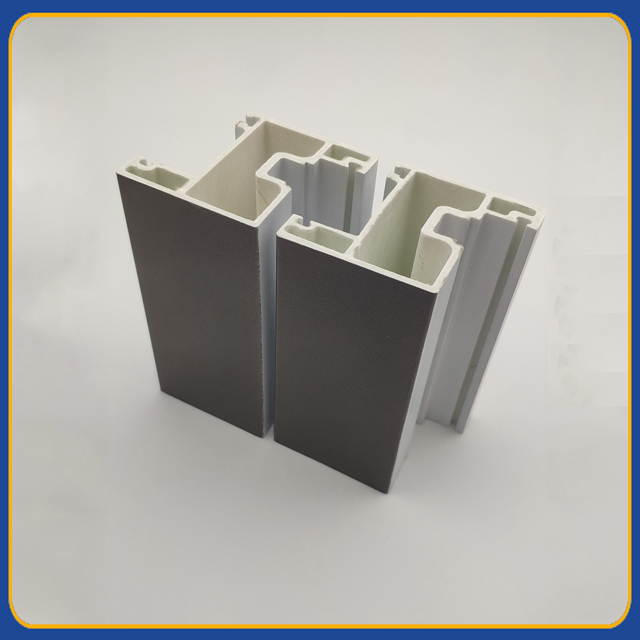

In well-made FRP Pultrusion Profiles, this early setup directly affects repeatability. For FRP Window Profiles and other frame-type parts, consistent reinforcement placement is also important because small dimensional changes can affect assembly, glazing fit, and sealing performance.
The reinforcement then enters the wet-out stage. In a resin bath, fibers travel through an open trough of liquid thermoset resin until they are saturated. This method is proven and economical, but it requires tight control to avoid trapped air, excess resin, or incomplete impregnation.
Closed resin injection gives the manufacturer more control. Fibers enter a chamber where resin is delivered under pressure, improving consistency and reducing the risk of air entrapment. This is valuable for structural FRP Pultrusion Profiles and for Polyurethane Pultruded Door & Window Profiles, where surface quality, internal consistency, and screw-holding performance are important.
Wet-Out Method | Strength | Limitation | Best Use Case |
Resin bath | Simple and cost-effective | More exposed to process variation | Standard high-volume profiles |
Resin injection | Better wet-out control | More equipment complexity | Structural or tight-tolerance profiles |
Polyurethane injection | Strong wet-out and fast curing potential | Requires controlled metering and mixing | Polyurethane Pultruded Profiles and frame applications |
Incomplete wet-out is a serious hidden risk. Dry fiber, voids, and resin starvation may not be obvious during unloading, but they can reduce strength and allow moisture or chemicals to reach the reinforcement.
Before entering the die, the wet reinforcement passes through preforming guides. These guides compact the bundle, remove excess resin, align reinforcement layers, and shape the material gradually. The aim is to enter the die as a stable preform, not as a loose mass of fiber and resin.

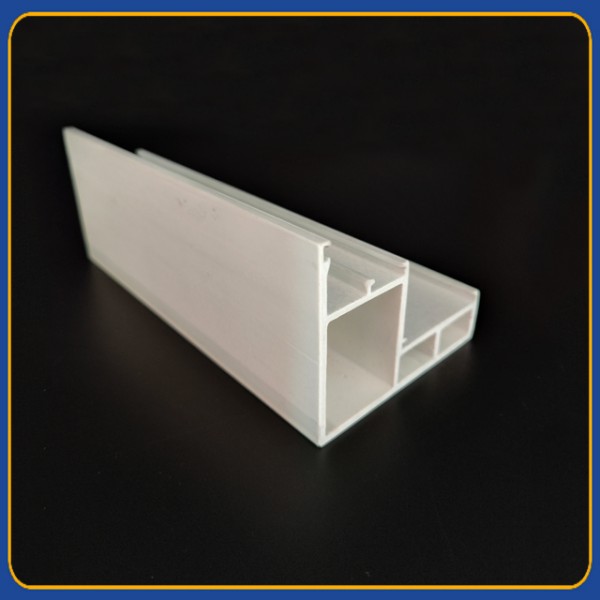

This stage affects corners, wall thickness, and internal consistency. Gradual preforming improves dimensional stability, which is critical for Custom FRP Profiles with complex geometry. Door frames, window frames, hollow sections, and snap-fit components all depend on accurate preforming before final curing.
The heated steel die gives FRP Pultrusion Profiles their final cross-section. Inside the die, heat activates polymerization and cross-linking, converting the liquid resin into a solid thermoset matrix. Die temperature, pull speed, catalyst level, and profile thickness must work together so the part cures fully before exit.
Cure kinetics matter because a smooth surface does not guarantee a cured interior. If the line runs too fast, the resin may remain under-cured. If the die is too hot, the reaction may cause cracks or internal stress.
Once the profile exits the die, a pulling system keeps the line moving. Caterpillar pullers or reciprocating grips apply steady traction without crushing the cured profile. Pull force and speed must match resin chemistry, profile geometry, and die length.
After cooling enough to hold shape, the continuous profile is cut to length. Diamond-tipped saws are often used because glass-reinforced composites are abrasive. Clean cutting reduces splintering, improves fit-up, and lowers finishing work before shipment, especially for FRP Door Profiles and FRP Window Profiles that must be assembled into clean frame systems.
The cost of FRP Pultrusion Profiles depends on resin type, fiber volume, surface veil, profile complexity, tolerance level, production volume, and tooling. Standard shapes usually cost less than custom profiles with tight tolerances, flame retardants, special color, or chemical-resistant resin.
Lowest price should not be the only measure. Better wet-out, stronger surface protection, and tighter dimensional control can reduce maintenance, replacement, and installation costs. In corrosive service, a higher initial price may still beat painted or galvanized steel over the lifecycle.
Cost Driver | Lower-Cost Direction | Higher-Performance Direction |
Resin system | Polyester | Vinyl ester, epoxy, or polyurethane |
Profile shape | Standard angle, tube, rod | Custom FRP Profiles and complex geometry |
Surface protection | Basic finish | Surface veil plus UV package |
Quality control | Basic inspection | Test reports and traceability |
Application | Light-duty use | Structural, corrosive, or architectural service |
Door and window systems | Basic frame profile | Polyurethane Pultruded Door & Window Profiles |
Service life depends on the environment and on manufacturing choices made before installation. Resin chemistry affects chemical resistance, surface veil protects reinforcement, UV inhibitors slow weathering, and complete cure improves stability under moisture and heat. Poor wet-out or under-cure can shorten lifespan even with the right resin.
Chemical exposure, salt spray, freeze-thaw cycling, abrasion, sustained load, and sunlight should be evaluated together. A dry warehouse profile faces different risks from one installed above wastewater channels. FRP Doors and Windows require a different durability lens again: dimensional stability, thermal insulation, fastener retention, and weather-seal performance become part of the long-term value.
FRP Pultrusion Profiles can usually be cut and drilled on site, but the tools matter. Diamond blades, carbide tools, dust extraction, gloves, eye protection, and respirators improve cut quality and safety. Cut edges should be sealed when profiles are used in wet, chemical, or corrosive service.
Bolted connections need suitable edge distance, washer size, torque control, and compatible fasteners. Stainless steel hardware is common in corrosive settings, while oversized or poorly drilled holes can weaken the connection. For FRP Door Profiles and FRP Window Profiles, installation accuracy also affects frame squareness, gasket compression, and opening-closing performance.
Standard FRP Pultrusion Profiles are usually best when the project needs quick supply, predictable cost, and common shapes such as angles, rods, tubes, or channels. They work well for platforms, railings, cable supports, and general industrial structures.
Custom FRP Profiles fit projects where geometry, stiffness, color, fire performance, corrosion resistance, or assembly efficiency must be optimized. For FRP Doors and Windows, customization may involve drainage grooves, glazing channels, screw bosses, thermal-break-like geometry, or reinforced corners. A strong supplier should compare standard availability with custom long-term value instead of pushing one option for every project.
FRP Pultrusion Profiles are made through fiber feeding, resin impregnation, preforming, heated die curing, pulling, cooling, and cutting. Each stage affects strength, corrosion resistance, dimensional accuracy, surface durability, and installation reliability.
Before choosing a supplier, confirm the resin matrix, reinforcement layout, surface veil, dimensional tolerance, mechanical test data, fire rating, and batch documentation. The best FRP Pultrusion Profiles are manufactured and verified for the load, environment, compliance requirement, and installation method your project actually demands, whether the final product is a platform beam, cable tray component, Custom FRP Profile, or Polyurethane Pultruded Door & Window Profile.
A: FRP Pultrusion Profiles are continuous fiberglass-reinforced composite shapes made with a resin matrix. Common forms include rods, tubes, angles, channels, beams, and custom structural profiles.
A: Fiberglass rovings and mats are pulled through resin, shaped by preforming guides, cured inside a heated steel die, then continuously pulled, cooled, and cut to length.
A: They usually contain glass fiber reinforcement, thermoset resin such as polyester, vinyl ester, epoxy, or polyurethane, plus additives like UV inhibitors, pigments, fire retardants, and surface veil.
A: Pultrusion pulls reinforced fibers through resin and a heated die, while extrusion pushes melted material through a die. Pultrusion is mainly used for strong, constant-section composite profiles.
A: Pultruded FRP profiles are lightweight, corrosion-resistant, non-conductive, and low maintenance. They are often used where steel may rust, require coating, or be difficult to install.
A: Buyers should check for exposed fibers, surface cracks, dry fiber, voids, blisters, delamination, warping, twist, rough cut edges, and inconsistent dimensions before accepting a batch.
