FRP Pultrusion Profiles are constant-cross-section composite shapes made by pulling continuous fiber reinforcement through a resin matrix and a heated die. This guide explains how pultrusion works, what materials matter, where FRP performs better than steel or aluminum, which applications benefit most, and what buyers should check before requesting a quote.
Pultrusion is a continuous manufacturing route for fiber-reinforced polymer components. Glass fiber rovings, mats, or fabrics are fed from creels, held under controlled tension, impregnated with resin, shaped through preforming guides, and cured inside a heated steel die. A pulling system moves the cured profile forward, and a cut-off saw trims it to the required length.
This process gives FRP Pultrusion Profiles their main structural advantage: the fibers run continuously along the profile. That lengthwise reinforcement supports high tensile strength, useful flexural behavior, and repeatable dimensions over long production runs. Unlike hand-built composites, the process is designed for consistent geometry and production efficiency.
Extrusion pushes softened material through a die; pultrusion pulls reinforced material through the forming system. The pulling action keeps fibers aligned while wet-out and curing happen, which helps create predictable load paths. Better fiber alignment usually means fewer random weak zones.
Dimensional stability comes from the fixed die and controlled curing cycle. When the resin crosslinks properly, the profile becomes rigid before leaving the line. Buyers specifying FRP Pultrusion Profiles for frames, rails, door systems, window systems, and support structures should connect this process logic with the final mechanical properties.

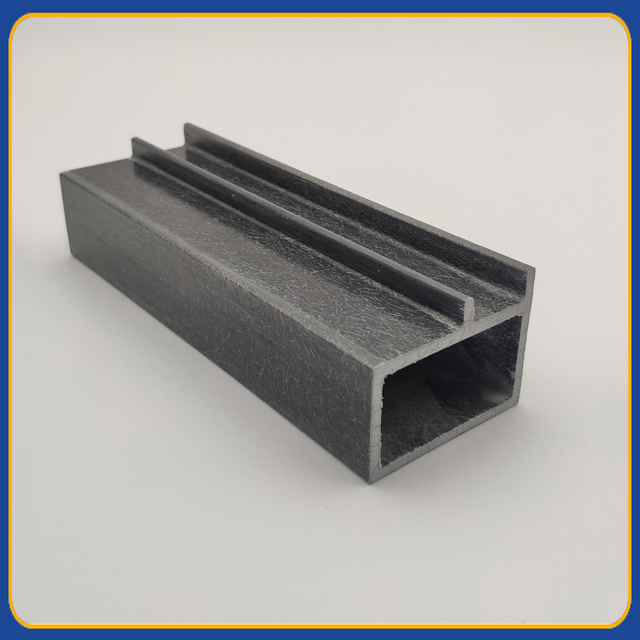

Common shapes include channels for frames, angles for edge support, I-beams for spans, square tubes for posts, round tubes for handrails, rods for reinforcement, flat bars for bracing, and grating bars for access systems. The strongest shape is not always the best choice. The right profile places reinforcement in the direction where the project actually needs strength.

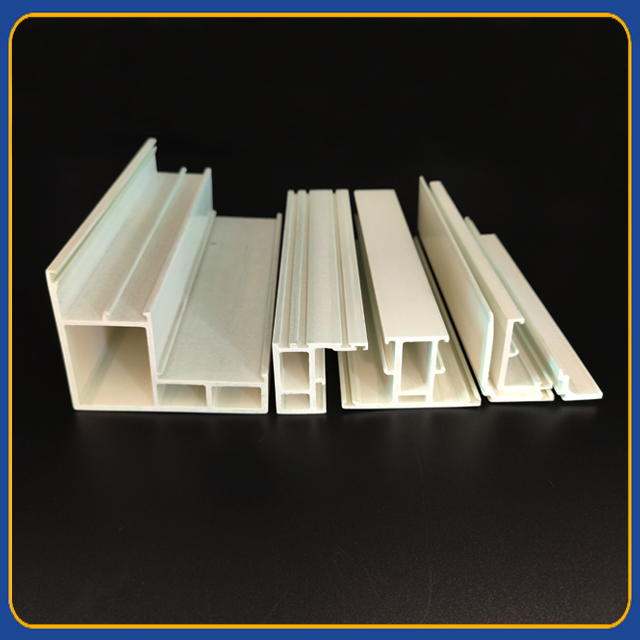

Custom FRP Profiles are useful when standard channels, tubes, or beams cannot meet the required geometry. For example, FRP Door and Window Profiles may need integrated grooves, sealing surfaces, thermal breaks, or reinforced corners. In these cases, the profile design must balance structural performance, surface finish, installation tolerance, and long-term dimensional stability.
Reinforcement defines much of the profile’s mechanical behavior. E-glass is the standard cost-performance option because it provides good tensile strength, electrical insulation, corrosion resistance, and broad availability. Carbon fiber is used when stiffness and weight reduction matter more than price, while aramid fiber is selected for impact resistance and toughness.
Most industrial FRP Pultrusion Profiles use glass fiber, but the reinforcement format matters. Continuous rovings improve lengthwise strength, mats improve transverse support, and woven fabrics can improve multidirectional performance. A technically sound specification should describe both fiber type and reinforcement architecture.
The resin matrix controls corrosion resistance, temperature tolerance, surface quality, fire behavior, and long-term durability. Polyester is common for general industrial profiles with moderate exposure. Vinyl ester resin is better suited to chemical plants, wastewater sites, marine structures, and acidic or alkaline environments.
Epoxy systems can support higher mechanical, thermal, or electrical performance where the project justifies tighter processing control. Polyurethane Pultruded Profiles can improve impact resistance, surface finish, and toughness, making them relevant for door frames, window frames, protective edges, and profiles exposed to repeated handling. Choosing the wrong resin may not cause immediate failure, but it can shorten service life under UV, chemical, wet, or hot conditions.
Resin system | Best use case | Main advantage | Buyer risk if mis-specified |
Polyester | General structures | Cost-effective performance | Limited severe chemical resistance |
Vinyl ester | Marine and chemical sites | Strong corrosion resistance | Higher material cost |
Epoxy | Electrical or high-performance parts | Mechanical and dielectric performance | Tighter processing control |
Polyurethane | Door, window, and impact-prone profiles | Toughness and surface finish | Supplier capability matters |
A surface veil is a thin protective layer that helps shield fibers from abrasion, UV exposure, and chemical attack. In outdoor use, it can reduce fiber blooming, surface erosion, and cosmetic degradation. UV stabilizers, pigments, fillers, and fire-retardant additives can be built into the system for harsher service environments.
Fire performance should be verified, not assumed. For platforms, walkways, electrical infrastructure, FRP Doors and Windows, and public access areas, ask whether the quoted FRP Pultrusion Profiles meet a recognized flame spread test and whether that result applies to the exact resin package being supplied.
Two profiles with the same size can perform differently if their internal composition differs. Fiber volume fraction, resin content, void content, wet-out quality, and the fiber-matrix interface all affect strength and durability. Dry fibers, resin-rich zones, and weak bonding can reduce performance even when the surface looks acceptable.
For FRP Door Profiles and FRP Window Profiles, internal consistency is especially important because the profile must hold shape, accept hardware, maintain sealing performance, and resist repeated opening, closing, wind pressure, moisture, and cleaning chemicals. A smooth surface is valuable, but the hidden reinforcement structure determines how the profile behaves over years of use.
The strongest commercial argument for FRP Pultrusion Profiles is the combination of low weight and usable structural strength. Lighter components reduce shipping cost, simplify manual handling, and may lower the need for cranes during installation. On retrofit projects, reduced weight can also limit extra demand on existing structures.
Weight savings should not replace engineering review. Span, load direction, deflection limits, safety factors, and connection design still matter. A composite profile works best when the design uses its own strengths rather than copying a steel detail without adjustment.
Corrosion resistance is often the deciding factor in wet, salty, or chemically aggressive locations. Steel may need coatings, repainting, galvanizing, or scheduled replacement, while FRP Pultrusion Profiles can reduce maintenance when the resin system matches the exposure. This is why the material appears in platforms, stairs, handrails, cable trays, grating, FRP Doors and Windows, and access structures around chemical processing, marine facilities, and wastewater treatment.
FRP is electrically non-conductive, thermally insulating, non-magnetic, and generally transparent to many electromagnetic signals. These properties help in electrical equipment areas, utility structures, telecom installations, radar-adjacent sites, and environments where metal conductivity creates risk. Cable tray supports, insulator components, access ladders, handrails, and FRP Window Profiles can benefit from these traits when insulation or signal compatibility is part of the design brief.
System-level review remains necessary. Fasteners, brackets, grounding rules, fire rating, and installed location may change how the final assembly behaves.
FRP is anisotropic, so its strength changes by direction. Pultruded profiles are usually strongest along the fiber direction, while transverse strength, interlaminar shear strength, bolted connection zones, and creep under sustained load require careful design. Long-term exposure to heat, UV, moisture, or chemicals can also influence safety margins.
Factor | FRP | Steel | Aluminum | Wood |
Corrosion resistance | Excellent when specified correctly | Coating often required | Good but not immune | Weak in wet settings |
Weight | Low | High | Low to medium | Low to medium |
Maintenance | Low in suitable environments | Often high | Moderate | Often high outdoors |
Electrical behavior | Non-conductive | Conductive | Conductive | Usually non-conductive |
Design caution | Directional properties and connections | Corrosion and weight | Deflection and galvanic issues | Rot and moisture |
Lifecycle cost | Strong in corrosive sites | Can rise with maintenance | Moderate | Can rise with replacement |
Industrial access systems use FRP Pultrusion Profiles because corrosion, worker safety, and downtime affect the real cost of ownership. Channels, beams, grating bars, stair components, and handrail tubes can be assembled into lightweight structures that resist moisture and many chemicals. Load rating, slip resistance, deflection, fire behavior, and fastening method should be confirmed before purchase.
A cheaper metal system may look attractive at first. Recoating, rust repair, shutdown labor, and replacement can make the lifecycle cost much higher in aggressive facilities.
Salt spray, humidity, biological exposure, and cleaning chemicals make coastal and wastewater sites demanding. Vinyl ester resin, surface veil, UV stabilization, and stainless steel fasteners are often worth the added cost. Cut edges, drilled holes, and field modifications may need sealing or supplier-approved treatment.
A marine-grade specification should define exposure conditions, expected service life, temperature range, chemicals, fastener type, and documentation requirements. Color and dimensions alone are not enough.

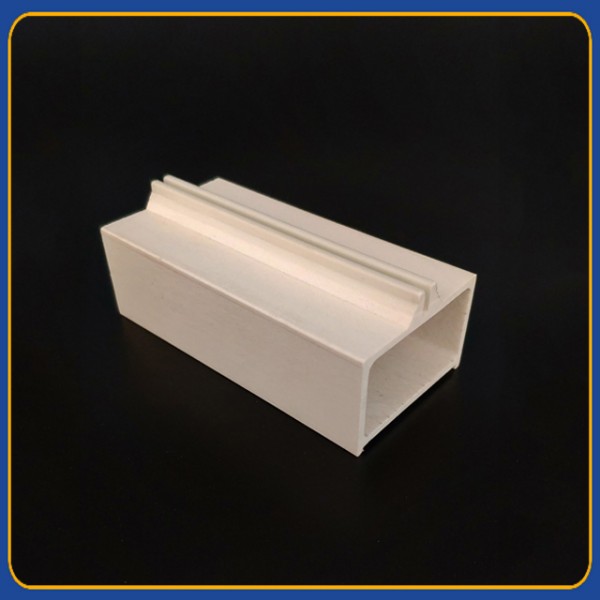

FRP Doors and Windows need profiles that combine dimensional stability, impact resistance, clean appearance, low maintenance, and moisture resistance. FRP Door and Window Profiles can be designed for frames, sashes, thresholds, reinforcement members, and structural edges where wood may rot and metal may corrode or transfer heat.
Polyurethane Pultruded Door & Window Profiles are especially relevant when toughness, surface finish, and repeated-use durability matter. Door and window systems also require attention to screw-holding strength, seal contact surfaces, thermal movement, hardware attachment, and compatibility with coatings or finishes.
Non-conductive performance makes FRP valuable in electrical and utility work. Profiles may be used for cable supports, ladder systems, equipment platforms, antenna-support areas, and enclosures where metal conductivity or magnetic behavior is undesirable. FRP Pultrusion Profiles can also reduce handling difficulty in remote or elevated installations.
Telecom and radar-adjacent projects may value signal transparency. Structural requirements still come first, but electromagnetic compatibility can become a decisive advantage.
Construction and transportation applications use FRP when lightweight strength, corrosion resistance, and dimensional consistency improve the final assembly. Bridges, modular platforms, window reinforcement, vehicle components, and prefabricated frames can benefit from lower weight and reduced maintenance. Custom FRP Profiles are often the better option when a project needs a specific locking detail, drainage feature, edge radius, or installation interface.
FRP Pultrusion Profiles are a strong choice when corrosion resistance, low weight, electrical insulation, dimensional consistency, and reduced maintenance matter more than the lowest upfront material price. The best decision starts with the environment, then moves to resin matrix, reinforcement, surface protection, profile geometry, and connection method.
For architectural systems, FRP Door and Window Profiles should be evaluated not only for strength but also for hardware attachment, sealing performance, thermal movement, surface finish, and long-term moisture resistance. Extra engineering review is wise when members carry sustained structural loads, use bolted connections, need strict fire performance, or face aggressive chemical and UV exposure. Before comparing quotes, confirm operating conditions, standards, installation method, and lifecycle expectations.
A: FRP Pultrusion Profiles are continuous fiberglass-reinforced composite shapes made through pultrusion. They are lightweight, corrosion-resistant, and commonly used for beams, channels, tubes, grating, and structural supports.
A: Continuous fibers are pulled through resin, shaped through guides, cured in a heated die, and cut to length. This creates profiles with consistent cross-sections and strong longitudinal properties.
A: Pultruded FRP profiles are used in platforms, walkways, handrails, ladders, bridges, cable supports, marine structures, wastewater plants, and chemical facilities where corrosion resistance and low maintenance matter.
A: FRP is better than steel in corrosive, wet, or electrically sensitive environments because it does not rust and is non-conductive. Steel may still be preferred for certain high-load designs.
A: Most FRP pultrusion uses glass fiber reinforcement with polyester, vinyl ester, epoxy, or polyurethane resin. The resin system affects corrosion resistance, fire performance, surface quality, and service life.
A: FRP Pultrusion Profiles are strongest along the fiber direction and usually limited to constant cross-section shapes. Connections, transverse loads, fire ratings, and long-term creep need careful design.
