A standard profile may fit a drawing but fail in real use. It may lack strength, resist assembly, or increase machining costs. Custom FRP Pultrusion Profiles solve these issues through application-based design. This guide explains profile design, pultrusion manufacturing, testing, and complete OEM project support.
● Custom FRP Pultrusion Profiles should begin with operating conditions, loads, assembly needs, and dimensional limits. Starting with shape alone often creates avoidable design changes.
● Pultrusion works best for continuous profiles with a constant cross-section. Ribs, grooves, hollow areas, and fastening zones can still be integrated into the design.
● Glass fiber placement, resin selection, wall thickness, and profile geometry work together. Changing one factor may affect strength, weight, curing, and production stability.
● A reliable development process includes technical communication, CAD review, mold development, sample production, testing, approval, and controlled mass production.
● OEM support can cover custom colors, dimensions, cross-sections, cut lengths, machining, packaging, labeling, and repeat-order management.
● Standard profiles suit general applications and smaller orders. Custom tooling creates more value when it reduces parts, machining, assembly time, or long-term maintenance.
● A detailed request for quotation helps the manufacturer evaluate feasibility and provide more accurate pricing.
Custom profile development should start with the application, not the mold. A manufacturer needs to understand where the profile will operate, what it must support, and how it will connect to other parts.
The design team should identify moisture, sunlight, chemicals, temperature changes, and electrical risks. Indoor and outdoor profiles may need different surface protection or material formulations.
A profile installed near the coast faces different risks from one used indoors. Chemical plants, humid buildings, electrical systems, and exposed frames also create separate design needs.
Strength alone does not define a successful profile. The designer must also consider stiffness, deflection, impact, support distance, and long-term loading.
A lightweight profile may carry the required load but bend too far. Increasing wall thickness can help, but a better rib or hollow structure may deliver stiffness more efficiently.
Pultrusion continuously produces material through a fixed die. Therefore, the profile needs a constant cross-section along its length.

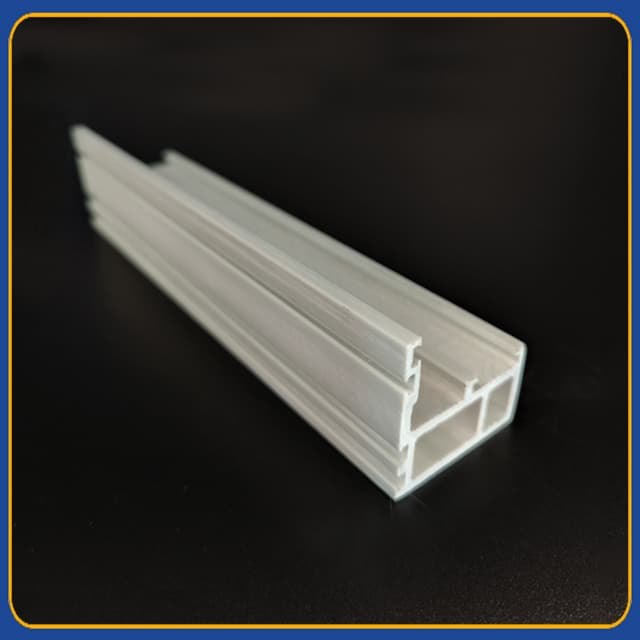

Designers can still include ribs, hollow chambers, grooves, curved corners, and reinforced walls. However, sudden wall changes or difficult internal areas may affect fiber placement and curing.
A custom profile should support the final assembly process. Useful features may include screw channels, drainage paths, grooves, slots, sealing surfaces, or reinforced fastening areas.
Integrated features can reduce separate components and machining steps. They may also improve alignment during installation. However, each feature must remain practical for pultrusion and mold release.
Continuous glass fiber provides much of the profile’s lengthwise strength. Mats or other reinforcement layers can support transverse performance and surface stability.
The resin binds these materials together and protects them from the operating environment.
Material selection should reflect structural, insulation, corrosion, and weather requirements. It should not depend only on the lowest initial price.
Color, surface appearance, texture, and visible defects should be defined early. Buyers should identify which surfaces remain exposed after assembly.
Tip：Mark critical surfaces and dimensions on the drawing instead of applying tight tolerances everywhere.
A custom profile should pass through a controlled development process. Moving directly from a rough sketch to mass production increases the risk of tooling changes and rejected parts.
The buyer should provide drawings, samples, installation details, expected quantities, and performance targets. The manufacturer should then identify missing or conflicting requirements.
It is useful to separate mandatory features from preferred features. This distinction helps the engineering team protect essential performance while improving manufacturability.
The manufacturer converts the concept into a controlled profile drawing. The review should cover wall thickness, radii, hollow areas, tolerances, pulling direction, and reinforcement placement.
Features that are easy to machine may not be easy to pultrude. An early technical review can prevent incomplete curing, trapped reinforcement, warping, or difficult mold release.
After drawing approval, the manufacturer prepares forming guides and the heated die. Tool precision directly affects profile dimensions, surface quality, and production consistency.
The OEM agreement should also clarify tooling ownership, storage, maintenance, and future modification costs. These terms matter when the project involves repeat orders.
Initial samples should use the planned material system and manufacturing process. They must be checked against the approved drawing and assembly.
Note：Do not approve a sample based only on appearance; test its fit and intended function.
Pultrusion is a continuous manufacturing process. It produces profiles of consistent cross-section and allows long lengths to be made efficiently.
Glass rovings, mats, or other reinforcement materials enter the production line under controlled tension. They pass through the selected resin system until they are properly saturated.
Uneven tension can move fibers away from critical areas. Poor impregnation may create dry spots, weak zones, or surface defects.
The resin-wetted reinforcement passes through guides before reaching the heated die. These guides gradually arrange the fibers into the required cross-section.
Accurate placement is especially important around corners, ribs, hollow sections, and fastening areas. The final properties depend on both material content and fiber direction.
The reinforcement enters a heated metal die while a pulling system moves it forward. Heat activates the resin reaction and creates a rigid profile.
Die temperature, pulling speed, wall thickness, and material formulation must remain balanced. Unstable settings may cause cracking, incomplete curing, surface problems, or dimensional variation.
The cured profile is cut to the required length. Further work may include drilling, notching, edge treatment, labeling, or assembly preparation.
Completing these steps at the factory can reduce installation work. It can also improve consistency when every part needs the same hole positions or cut pattern.
Custom production needs clear acceptance rules. Without them, the buyer and manufacturer may judge the same profile differently.
Inspection should cover length, wall thickness, cross-section dimensions, straightness, twist, color, surface finish, and cut quality.
Critical assembly areas may require tighter control. Hidden or nonfunctional surfaces usually do not need the same tolerance level.
Testing should match the profile’s real purpose. Possible checks include bending, tension, impact, fastening, insulation, corrosion, weather exposure, or flame behavior.
A door or window profile may also need testing as part of an assembled system. Joints, seals, fasteners, and glazing can influence the final result.
Production records should connect raw materials, process settings, inspection results, and finished batches. Approved samples can serve as visual and dimensional references.
When a project needs formal reports, the required testing method should be confirmed before production. Testing after completion may require new samples or extra costs.
OEM support should cover more than profile production. It should connect engineering, tooling, manufacturing, finishing, packaging, and repeat supply.
A capable manufacturer reviews the original concept and improves it for pultrusion. This may include CAD adjustment, material recommendations, tolerance review, and mold planning.
Drawing revisions should be controlled. Each approved change needs a clear version to prevent outdated specifications from entering production.
The project may begin with samples, followed by a pilot batch and mass production. Each stage has a different purpose.
Samples confirm geometry and basic performance. Pilot production checks process stability. Mass production then follows the approved design and inspection plan.
OEM services may include cutting, drilling, color matching, labeling, protective wrapping, cartons, wooden cases, or customized packaging.
Packaging should reflect the profile’s length, surface requirements, and shipping method. Long profiles need support against bending, impact, and movement during transportation.
The manufacturer should retain approved drawings, tooling records, and production settings. These records help maintain consistency across future orders.
Buyers should also confirm lead times, replacement procedures, inspection documents, and communication channels. These details reduce delays when demand changes.
Tip：Request separate prices for tooling, samples, testing, machining, packaging, and mass production.
Standard shapes remain practical for many applications. Custom profiles become valuable when standard tubes, angles, channels, or rods create design compromises.
A standard profile is often suitable when its dimensions and performance already meet the project. It avoids custom tooling and usually supports faster purchasing.
It also makes replacement easier. This option works well for general frames, supports, platforms, and low-volume projects.
A custom cross-section may combine several functions into one component. It can add fastening areas, improve stiffness, guide seals, or fit existing equipment.
This approach suits repeated production where lower assembly time offsets the tooling investment. It also helps when standard profiles require extensive cutting or extra connectors.
Unit price does not show the full cost. Buyers should include tooling, machining, fasteners, labor, assembly, maintenance, packaging, and replacement needs.
Decision Factor | Standard Profile | Custom FRP Profile |
Tooling | Usually not required | Custom tooling required |
Development time | Shorter | Includes design and validation |
Cross-section | Limited to existing shapes | Designed for the application |
Secondary work | May require more machining | Features can be integrated |
Best use | General or small-volume needs | Repeated or specialized projects |
A custom profile may cost more during development. However, it can lower total costs when it replaces several parts or simplifies installation.
A clear quotation request helps the manufacturer evaluate feasibility, cost, and production time. Missing information often leads to assumptions or repeated revisions.
Provide a dimensioned cross-section, three-dimensional file, or physical sample. Mark critical dimensions, visible surfaces, tolerances, and assembly locations.
The drawing should also show required cut lengths. Include hole positions or machining details when the manufacturer will complete secondary processing.
Describe where the profile will operate and what it must do. Include loads, support distances, temperature, moisture, chemical contact, outdoor exposure, and electrical needs.
This information allows the manufacturer to review both geometry and material suitability.
Provide the sample quantity, first production order, estimated annual volume, and expected reorder schedule. These details influence tooling plans, material preparation, and pricing.
A reliable forecast also helps the manufacturer plan packaging and production capacity.
State required tests, inspection documents, packaging, destination, and delivery schedule. Explain how samples will be approved before mass production.
A complete request should include:
● Profile drawing or sample
● Application environment
● Structural requirements
● Critical tolerances
● Color and surface needs
● Cut lengths and machining
● Sample and production quantities
● Testing requirements
● Packaging and delivery terms
Custom profiles succeed through clear requirements, practical design, controlled tooling, and verified production. TaiYun combines profile design, mold development, testing, customization, and mass production. Its FRP Pultrusion Profiles offer precise cross-sections, lightweight strength, corrosion resistance, and flexible OEM options. This integrated service helps reduce assembly work and supports consistent repeat orders.
A: FRP Pultrusion Profiles are constant-section components designed for specific structural and assembly needs.
A: FRP Pultrusion Profiles are pulled through a heated die after fiber and resin forming.
A: They can reduce machining, separate parts, assembly time, and installation errors.
A: Price depends on profile size, complexity, tolerances, and sample requirements.
A: Minor changes may be possible, but major changes often require new tooling.
