Traditional materials like steel, aluminum, and wood struggle heavily in harsh industrial environments. They frequently fail prematurely under constant exposure to moisture, chemicals, and extreme mechanical stress. Heavy corrosion drives up replacement cycles. Poor weight-to-strength ratios further complicate structural design. Engineers constantly seek better alternatives to avoid continuous maintenance.
Fiber Reinforced Polymer (FRP) provides a proven solution to these persistent engineering challenges. However, specifying the wrong composite matrix often leads to disastrous structural failures or severe budget overruns. You must select the right material for your specific job. A deep understanding of composite variations remains critical for project success.
This guide breaks down the four primary types of FRP used in modern engineering. We establish a clear evaluation framework to help you select high-performance FRP Pultruded Profiles based on your specific project demands. You will learn how to match fiber types, resin matrices, and structural geometries to achieve maximum durability.
The four main FRP categories are defined by their reinforcement fibers: Glass (GFRP/GRP), Carbon (CFRP), Aramid (AFRP), and Basalt (BFRP).
Glass Fiber FRP Pultruded Profiles (also known as GRP) account for the vast majority of commercial and industrial applications due to optimal cost-to-performance ratios.
The resin matrix (e.g., switching from standard polyester to Polyurethane FRP Pultruded Profiles) drastically alters shear strength, impact resistance, and environmental durability.
Cross-sectional geometry—whether specifying a Square Tube FRP Pultruded Profile or a Round Tube FRP Pultruded Profile—dictates load-bearing capabilities and installation modularity.
Fiber Reinforced Polymers derive their primary tensile strength from the embedded fibers. Manufacturers pull these continuous fibers through a heated resin bath in a process called pultrusion. The specific fiber type you choose determines the baseline mechanical properties of the final composite. Industry professionals classify these composites into four main categories based on the reinforcement material.
Glass fiber stands as the undisputed industry standard for structural components. Engineers rely on it heavily because it delivers an exceptional balance of strength, flexibility, and affordability. Fiberglass FRP Pultruded Profiles dominate water treatment plants, infrastructure developments, and chemical plant construction. They offer excellent dielectric properties, meaning they do not conduct electricity. Furthermore, GRP FRP Pultruded Profiles resist severe corrosion even when submerged in saltwater or exposed to acidic chemicals. They remain the default choice for walkways, handrails, and structural supports in aggressive environments.
Carbon fibers provide extreme stiffness, high tensile strength, and exceptionally low weight. They outperform glass fibers in sheer rigidity. Designers specify CFRP when they cannot compromise on weight or structural deflection. You will typically see carbon composites in aerospace components, automotive chassis, and highly specialized structural bridge reinforcements.
However, you must consider the significant trade-offs. CFRP demands a substantially higher upfront budget compared to glass. The material also exhibits a brittle failure mode under sudden impact. Engineers usually reserve carbon fibers for specialized load-bearing scenarios where absolute rigidity remains paramount.
Aramid fibers, commonly known by brand names like Kevlar, excel at energy absorption. They provide exceptional impact resistance and fracture toughness. Industries utilize AFRP for ballistic armor, blast protection panels, and specialized engineering applications requiring high-velocity impact mitigation. They absorb massive amounts of kinetic energy without shattering.
A critical caveat exists for aramid composites. They remain highly susceptible to UV degradation and moisture absorption. Manufacturers must properly encapsulate aramid fibers in a highly resistant resin matrix. If left exposed to sunlight or humidity, their mechanical properties will deteriorate rapidly.
Basalt fibers emerge from melted volcanic rock. They offer an exciting alternative to standard glass fibers. BFRP provides remarkable thermal stability and excellent alkaline resistance. It withstands extreme heat environments far better than traditional GFRP.
Engineers increasingly specify basalt composites for concrete reinforcement, especially in marine environments. BFRP does not rust, and it resists the highly alkaline nature of concrete paste. It serves as a superior alternative in specific high-temperature or heavily corrosive environments.
Performance Comparison Chart: The Four Main FRP Types | |||
FRP Category | Primary Advantage | Key Limitation | Typical Application |
|---|---|---|---|
GFRP / GRP | Cost-effective, high corrosion resistance | Lower stiffness than carbon | Infrastructure, chemical plants |
CFRP | Extreme stiffness, ultra-low weight | Premium budget required, brittle | Aerospace, structural retrofits |
AFRP | Superior impact absorption | Moisture/UV sensitivity | Ballistics, protective armor |
BFRP | High thermal and alkaline resistance | Limited widespread availability | Concrete reinforcement, marine |
While fibers provide the essential tensile strength, the resin matrix performs equally critical functions. The resin holds the fibers together. It transfers structural loads between individual fiber strands. More importantly, the resin dictates the environmental durability, thermal tolerance, and transverse shear strength of the final profile. Without the right resin, even the strongest carbon fibers will fail under chemical attack.
Polyester represents the most common resin used in general-purpose structural profiles. It provides an adequate baseline utility. You can use polyester for basic handrails or lightweight platforms. Vinyl ester offers a step up in performance. It provides enhanced chemical resistance and higher operating temperature limits. Engineers often specify vinyl ester for wastewater treatment facilities or mildly acidic environments.
Modern engineering increasingly demands higher performance thresholds. Moving from standard polyester to advanced matrices transforms the material's capabilities. Polyurethane FRP Pultruded Profiles deliver exceptional engineering advantages over traditional resins. Polyurethane (PU) boasts a significantly lower viscosity during the pultrusion injection process.
This lower viscosity allows for superior fiber wet-out. The resin thoroughly coats every single microscopic fiber strand. Better wet-out permits manufacturers to achieve higher glass-to-resin ratios. As a result, PU FRP Pultruded Profiles exhibit extraordinary transverse strength and vastly improved impact resistance. You can design profiles with thinner wall capabilities without ever sacrificing load-bearing capacity. This weight reduction directly translates to easier installation and reduced material volume.
Selecting the correct fiber and resin only solves half the engineering puzzle. You must also align the cross-sectional geometry to your specific application. The geometric shape dictates structural integrity, load distribution, and overall project assembly mechanics. Pultrusion allows manufacturers to create virtually any continuous profile shape.
Square tubes serve as the backbone for heavy-duty construction. Square Tube FRP Pultruded Profiles excel as primary load-bearing structures, vertical columns, and modular framing systems. They provide excellent torsional stability. The flat sides make them incredibly easy to connect. You can easily join square profiles using standard structural fasteners, gusset plates, and simple bolt configurations. This straightforward joint connection accelerates field assembly.
When you need to span horizontal distances, rectangular profiles perform best. Rectangle Tube FRP Pultruded Profiles are ideal for beams, floor joists, and extended horizontal spans. Their elongated shape provides targeted bending stiffness exactly where the load demands it. You evaluate rectangular tubes by looking at their weight-to-span ratios. They optimize material usage in elevated platforms, pedestrian walkways, and industrial catwalks, reducing overall dead load.
Circular geometry offers unique benefits for specific applications. Round Tube FRP Pultruded Profiles remain the preferred choice for handrail systems, antenna radomes, and specialized tool handles. Round tubes lack sharp edges, offering superior ergonomics for human contact. Structurally, a round profile presents a continuous surface. This shape ensures uniform deflection against high wind loads from any direction. Furthermore, they are widely used in dielectric applications, such as enclosing sensitive communication antennas without causing signal interference.
Profile Geometry | Primary Structural Benefit | Ideal Assembly Use Case |
|---|---|---|
Square Tube | High torsional stability, flat connection surfaces | Columns, vertical supports, modular frames |
Rectangle Tube | Maximum bending stiffness along the primary axis | Floor joists, horizontal beams, walkway spans |
Round Tube | Ergonomic grip, uniform wind-load deflection | Safety handrails, antenna covers, ladder rungs |
Procurement teams and structural engineers need a systematic approach to material selection. Guesswork leads to compromised safety or wasted budgets. By applying a rigid decision framework, you ensure the chosen composite meets all long-term project requirements.
Evaluate Lifecycle Return on Investment (ROI): Initially, composites command an upfront premium compared to raw carbon steel. You must look beyond the initial purchase order. Compare this premium against the long-term elimination of heavy maintenance. Steel requires regular sandblasting, expensive rust treatments, and frequent repainting. FRP materials eliminate these recurring labor and material demands. They provide a massive long-term value advantage over decades of service.
Assess Environmental and Chemical Compliance: Identify every chemical the structure will encounter. Will it face direct UV exposure from harsh sunlight? Will it sit in saltwater or experience continuous splash zones? Does the facility use highly acidic or alkaline cleaning agents? These answers determine your exact resin matrix. They also dictate whether you need specialized synthetic veils applied to the profile's surface to prevent UV degradation and fiber blooming.
Plan for Scalability and Assembly: Composites weigh up to 75% less than traditional steel equivalents. You must factor this massive weight reduction into your logistics planning. Lighter materials drastically reduce the need for heavy lifting equipment like cranes. They lower freight and transportation costs. Furthermore, field workers can maneuver and assemble lighter materials much faster, significantly cutting on-site fabrication labor.
Specifying the perfect material on paper does not guarantee success in the field. The pultrusion manufacturing process requires strict environmental controls and precise engineering. Buyers face several procurement risks if they partner with unverified manufacturers.
Several things can go wrong during the pultrusion process. If a manufacturer rushes the curing cycle or misaligns the pulling mechanism, the final product suffers. Common manufacturing defects include:
Poor Fiber Alignment: If fibers twist or bunch up inside the die, the profile loses its intended linear strength.
Inadequate Resin Wet-Out: Dry fibers that do not absorb enough resin create weak points prone to premature shearing.
Void Formation: Trapped air bubbles create internal micro-voids. These voids trap moisture later, leading to internal delamination during freeze-thaw cycles.

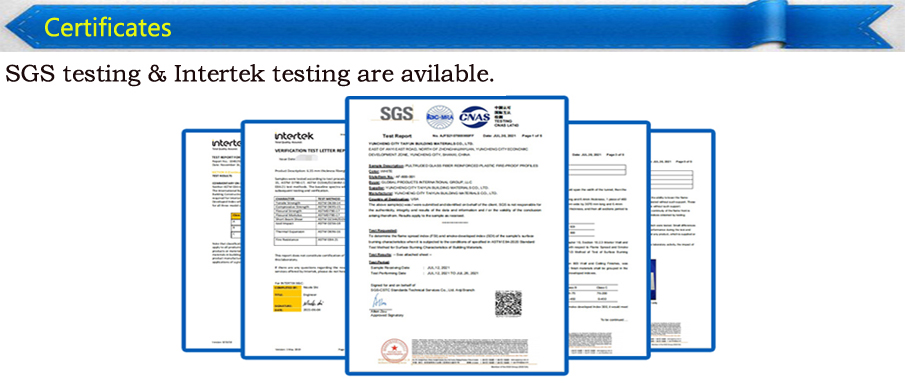

Never rely on a vendor's verbal guarantees. You must request independent batch testing data. Reliable manufacturers test their products against rigorous ASTM standards. Ask for ASTM D638 data to verify tensile strength and elongation. Request ASTM E84 test results to ensure the material meets required flame spread and smoke development ratings. Finally, check water absorption rates to confirm the resin matrix is fully sealed.
Procurement teams often make the mistake of choosing a vendor based solely on per-linear-foot pricing. This approach invites disaster. You should evaluate manufacturers based on their custom tooling capabilities. Can they modify a die to meet your exact wall thickness requirement? Assess their raw material traceability. A reputable vendor tracks the exact batch of resin and glass used for your order. Prioritize vendors who offer robust engineering support and structural load-case guidance.
Replacing traditional metals with advanced composites requires careful material selection. While the industry recognizes four main types of reinforcing fibers, commercial structural success depends on precise pairing. You will likely achieve the best results by selecting Glass Fiber FRP Pultruded Profiles for their outstanding durability and affordability. Pairing this robust glass reinforcement with an advanced polyurethane matrix maximizes impact resistance. Finally, choosing the correct geometry guarantees structural integrity across your entire assembly.
Do not leave your next infrastructure project to chance. We encourage your procurement and engineering teams to conduct a thorough load-case analysis immediately. Reach out to qualified pultrusion manufacturers to request material safety documentation and comprehensive technical data sheets (TDS). Securing these documents ensures your specified materials will perform flawlessly under real-world conditions.
A: Fiberglass refers strictly to the raw reinforcing glass strands. FRP (Fiber Reinforced Polymer) is the final, composite product. It comprises both the structural reinforcing fibers and the protective polymer resin matrix bound together.
A: Yes. Polyurethane possesses a lower viscosity during manufacturing. This allows it to saturate the fibers more completely. It enables a higher fiber volume fraction, resulting in superior transverse strength and significantly greater impact resistance than standard polyester.
A: Yes, you can fabricate them directly in the field. However, you must use diamond-grit or specialized carbide blades to prevent material splintering. You also must apply a protective polyurethane sealant to all exposed cut edges to prevent moisture ingress.
A: When manufactured correctly and sealed with UV-protective surface veils, GRP profiles easily last 50 to 80 years. Their exact lifespan depends heavily on the severity of chemical exposure and the quality of the resin matrix used.
